• Optionally sends order information by HTML formatted e-mail instead of plain text
• Allows custom formatting of the notification: header, footer, font sizes, colors, embeded images,...
• Optionally sends payment details. The first 4 digits of the CC number may be transfered. Please use the MmPGP for secure transfer of the entire CC#.
• Optionally sends detailed user data including the IP address, host, agent, language, etc.
• Optionally values of predefined form field variables from 4th party modules may be displayed in the notification.
• Customizable table design - free choice of fields/columns
• Product thumbnails may be included in the invoice!
• Long product descriptions may be used in addition to product names
• Variable tokens available in subject, header and footer
• Ordered products may be sorted by any column
• Additional user-defined column may be inserted in the invoice (any position). Miva variables, functions or file calls may be used to generate values for the additional column. It may contain for example a download link, price in a second currency, tracking info, etc.
• Several options for different ways of displaying product attributes (same line, new lines, autoselection)
• Adds the order ID number or other variables into the subject of the e-mail for better tracking
• Optionally sets the customer's e-mail address into the From field so, that it works on most mailservers (in contrary to the standard Merchant's notification module)
• Supports POP before SMTP - requirements at some secured mailservers
• Can display additional form fields like those of the Addednum or some other third party modules
• NEW: notification including the CC numbers may be sent encrypted, in cooperation with the MmPGP module
• NEW: both succesfull and unsuccesfull e-mail attempts are logged. The log file may be viewed in the MmHTML Admin control panel and unsucessfull notifications are accessible through the Ultra Batch Report
• NEW: optionally hides zero charges (tax, shipping,...)
• NEW: optionally displays subtotals
• NEW: advanced referrer tracking (original referring URL, search expression, entry time, entry page)
• NEW: time zone setting and user-defined date and time format
• Supports Miva Merchant 2, 3 and 4 on Unix and Windows platforms
• Both English and German localizations available (others may be done on request)
• Does not require OpenUI. Works with both OUI and MMUI.
• Very easy installation, plug&play, no coding, no programming experience necessary
• No OUI hook conflicts - truXoft modules are 100% conform to the Miva Merchant API, they do not use OUI extensions and therefore never cause hook conflicts with other modules, otherwise common at OUI modules.

top

Merchant users and owners often complain about the readability of the notification e-mail. They are not aware of the fact that classical e-mail protocol (SMTP) does not have any text formatting features. For these reasons, IT professionals use to set their mail clients to display messages in a fixed width font. That allows seeing formatting of such texts like Miva Merchant notification e-mail, without any hassle.

There is also the possibility to send e-mail messages for example in the HTML format. HTML is supported by all current major mail clients. Among IT professionals, the HTML e-mail is not too popular, because of related security problems in some client versions, because of increasing the transferred data volumes, and maybe because of few other reasons.

However, HTML offers possibilities not available with plain SMTP and the formatting is often requested feature. The way MmHTML module implements the HTML format is secure for both sides and the transferred data is only slightly higher than at a plain-text message (in contrary to messages formatted within Outlook or other clients, where the volume may be easily the multiple of the original size).

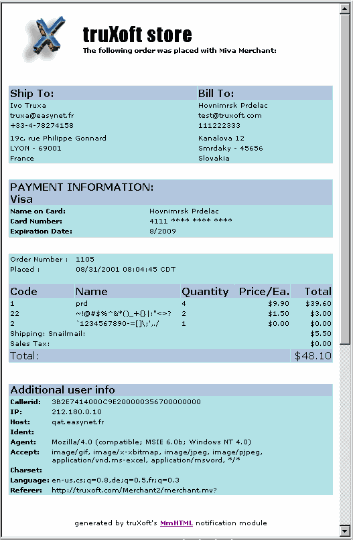

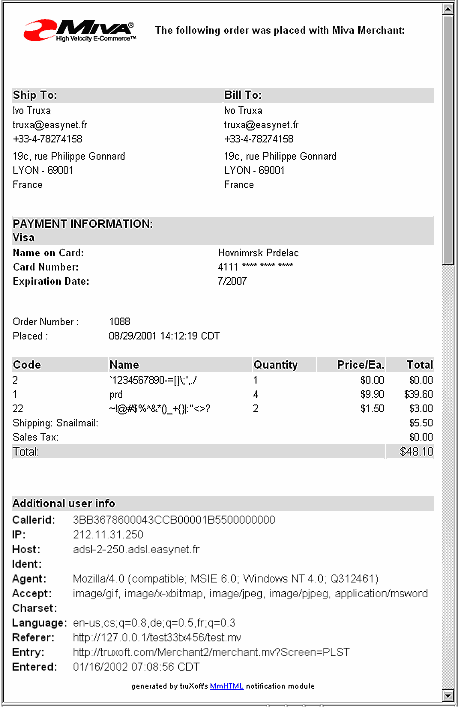

MmHTML allows you to customize the look and feel of the notification message. You can change colors, fonts, sizes, add logos, images, formatted text and anything else you may need. At the Merchant notification, fancy e-mail formatting is probably not as important as aligning of the columns, but it may be more interesting at the Customer Notification Module MmHTMLc.

top

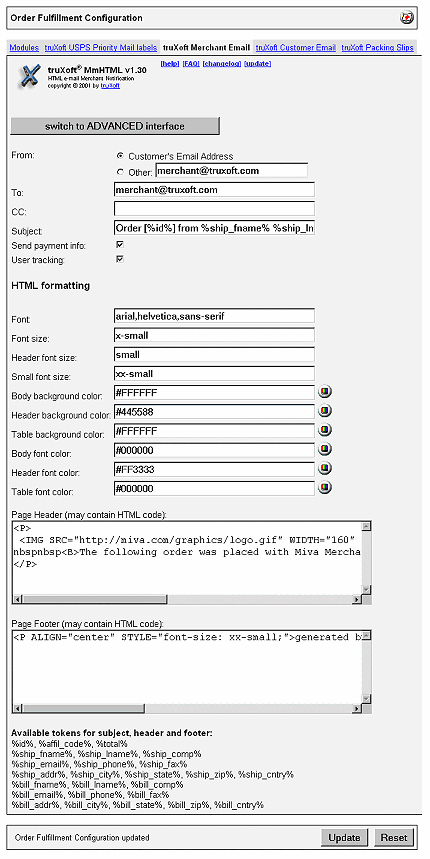

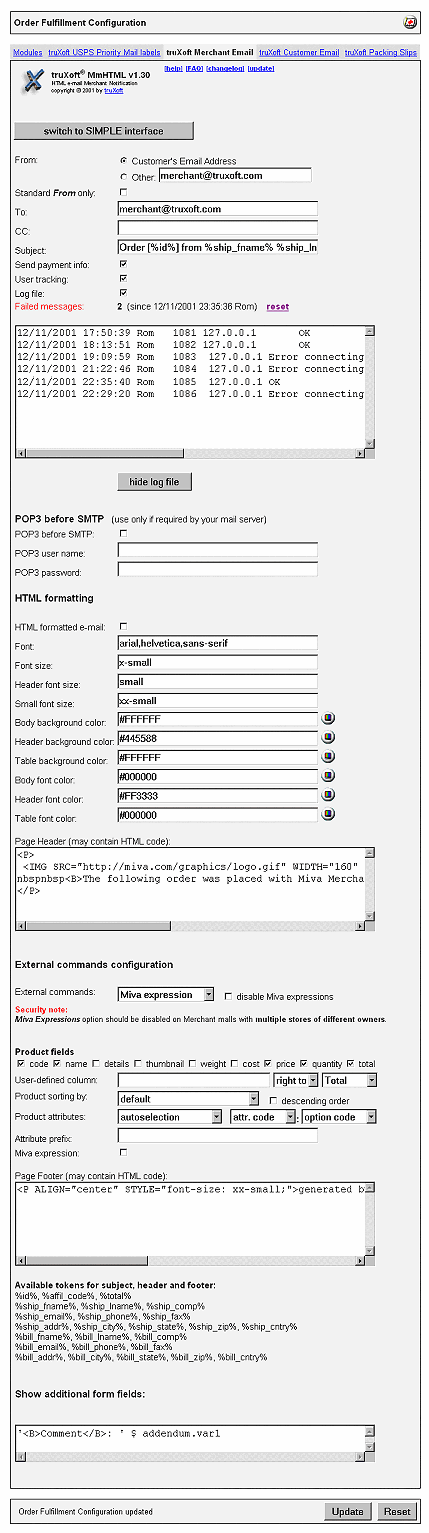

There are following configuration options available:

• From Customer's Email Address
• From Other
• Standard From only
• To
• CC
• Subject
• Use real name in FROM address
• Send payment info
• User tracking
• PGP encryption
• Log file
• Failed messages
• reset

• POP3 before SMTP
• POP3 user name
• POP3 password

• HTML formatted e-mail
• Font
• Font size
• Header font size
• Small font size
• Body background color
• Header background color
• Table background color
• Body font color
• Header font color
• Table font color

• Date/Time format
• Time zone offset

• External commands
• disable Miva expressions

• code
• name
• details
• thumbnail
• weight
• cost
• price
• quantity
• total
• User-defined column
• Product sorting by
• descending order
• Product attributes
• Attribute prefix
• Miva expression
• Subtotals
• Hide zero charges

• Available tokens for subject, header and footer
• Show additional form fields

configuration options

If you want that the merchant notifications are being sent to you with the customer's e-mail address in the From field, so that you can simply hit the Reply button to send them e-mail, check this option. However, on some mail servers, who block relaying (anti-spam measure), sending e-mail with an address not originating on your domain may be restricted. For this reason, MmHTML, unlike the standard Miva Merchant notification, uses normally two From addresses for sending From Customers's Email Address - the customer's address and the Other address as defined below. The Other address has to originate on the domain of the mail server or on a domain allowed to send e-mail through that mail server.

The mail server is defined in MM Admin » Domain settings » Site Configuration and by default it is set to "localhost". You may also use your regular server name in the same way as you use it in your e-mail software for picking up e-mail from this mailbox. You can also use a third party mail server (for example the one of your local ISP), but again: you have to change the Other and the To addresses so that they originate on the domain of the mail server. At some access providers you will have to enable the POP3 before SMTP option to be able to send e-mail through their mail server with MmHTML and some ISPs may deny relaying completely.

configuration options

As mentioned above, unless the option Standard From only is enabled or the From Customer's Email Address option disabled, MmHTML uses always both addresses in the From and Reply-to fields of the SMTP e-mail header. As explained above, it helps bypassing of relay blocking on some mail servers. For this reason, the Other field has to be filled and has to contain a valid address originating on a domain accepted by your mail server (usually your own domain) even if you din not select sending from Other address.

configuration options

If you should have problems with the notifications being sent with two From e-mail addresses (explained above), you may disable this advanced feature and use just the selected From address exactly as the standard Miva Merchant notification module does. Some people asked for this option, because they are used to hit the Reply To All button in their mail client and in such case both addresses may appear in the recipient field. Although using the Reply button instead of Reply To All on most mail clients fixes the problem, I made the feature optional as requested.

configuration options

Recipient's e-mail address

configuration options

Copies of the notifications will be sent to an address defined in this field. If you need to send copies to multiple addresses, separate them with commas. Some mail servers will reject more than a single address in the CC field from Miva Merchant. In that case you may try using semicolon or a space as separators and also try disabling the Angle Brackets option in Miva Merchant Domain Settings.

configuration options

You can define the text that appears in the subject line of the notification. You can use plain neutral text, or insert tokens as described below, that will be replaced by the respective value related to that very order at the time of sending the e-mail.

configuration options

When sending the notification e-mail, MmHTML can format the e-mail address so that the real name appears in the mail reader, instead of the raw address.

Please note that on some servers this feature may fail in some cases, so please be sure to test the notifications after turning the option on!

configuration options

When enabled, all available payment information will be sent with the notification, with the exception of the Credit Card number in the standard configuration - only the first 4 digits will be displayed. If you have also the MmPGP module installed and have enabled the PGP encryption option, the notification will include the complete CC number and will be sent securely PGP encrypted.

configuration options

When enabled, detailed information about the user will be attached to the notification. The information contains:

• Callerid - 32 characters unique user ID as stored on the users PC in a cookie
• IP - customer's IP address, or the IP address of a proxy server he used
• Host - customer's host domain name (if DNS lookups enabled in your Empresa configuration) or its IP address. May be used to recognize the location or country of the user.
• Ident - identification string in the case you require authorization through Apache on your website (usually will be blank)
• Agent - identification string of the browser containing usually also the OS version
• Accept - list of accepted MIME types; may serve to see what software is installed on clients machine
• Charset - accepted character sets; may be used to recognize users with foreign character sets
• Language - user's language preferences; may help to see user's nationality

When you have properly installed the optional referrer tracking with the help of the refer.mv script, included in the MmHTML installation package, also the referrer information appears here:

• Referer - external referrer URL including the query string
• Entry - the URL of the page on your website through which the visitor entered
• Entered - the time of the entrance

configuration options

This option appears only if the MmPGP module is installed in the store. The notification is then sent including the HTML formatting through a secure PGP encrypted e-mail and if the Payment data option is selected, unlike in plain unencrypted notifications, it contains the full CC number. Please note that some versions of mail client software are not capable to read PGP encrypted in HTML format.

configuration options

If this option is selected, a record for each notification will be recorded into a log file, containing information about the result of the operation and eventual error messages.

configuration options

Number of messages that were not successfully sent.

configuration options

You may reset the counter of the failed messages with clicking on this link.

configuration options

Some administrators protect their mail servers so that require authorization before allowing you to send e-mail. Because the standard SMTP protocol (sending e-mail) does not support the authorization as the POP3 protocol does (reading e-mail), the authorization is made with a short POP3 request before the using the SMTP for sending.

configuration options

Your login for the mail box. Keep empty if you do not use the POP3 before SMTP option.

configuration options

Your password for the mail box. Keep empty if you do not use the POP3 before SMTP option.

configuration options

By default, the notifications are being sent in HTML format, but if you for some reason do not want or cannot send HTML formatted notifications, you can still profit from numerous advantages of the module and send the customized notifications in plain-text.

configuration options

You can define the font face used on the notification

configuration options

Basic font size for address fields, order items, etc. You may use any CSS sizes and units: xx-small, x-small, small, medium,... pt, px, mm, in,...

configuration options

Font size for the table header. You may use any CSS sizes and units: xx-small, x-small, small, medium,... pt, px, mm, in,...

configuration options

Small font is used for example for attributes. You may use any CSS sizes and units: xx-small, x-small, small, medium,... pt, px, mm, in,...

configuration options

The global body background color. You may use both numeric and verbose names. You may check the color definitions at Microsoft for details, but please note that some older mail clients may interpret some colors incorrectly.

configuration options

Background color of the table header and footer. You may use both numeric and verbose names. You may check the color definitions at Microsoft for details, but please note that some older mail clients may interpret some colors incorrectly.

configuration options

Background color of all tables in the notification. You may use both numeric and verbose names. You may check the color definitions at Microsoft for details, but please note that some older mail clients may interpret some colors incorrectly.

configuration options

Global text color text out of tables. You may use both numeric and verbose names. You may check the color definitions at Microsoft for details, but please note that some older mail clients may interpret some colors incorrectly.

configuration options

Text color of table headers and footers. You may use both numeric and verbose names. You may check the color definitions at Microsoft for details, but please note that some older mail clients may interpret some colors incorrectly.

configuration options

Color of text in tables. You may use both numeric and verbose names. You may check the color definitions at Microsoft for details, but please note that some older mail clients may interpret some colors incorrectly.

configuration options

With the help of this formatting string you can precisely define the appearance of date and time stamps apearing on the notifications. Please see also date and time tokens available for the use in the header, footer or the subject line.

• dd - day of month (numeric)
• wday - English name of the weekday
• mm - month (numeric)
• month - English name of the month
• mon - abbreviated name of the month (3 characters)
• yyyy - year (4digits)
• yy - year (2 digits)
• hr - hour (padded with 0)
• mn - minute (padded with 0)
• sc - second (padded with 0)
• PM - if used, US 12 hrs instead of 24hrs time is displayed (12AM/12PM)

configuration options

Unless you can change the system time on your server, standard Miva Merchant display everywhere GMT time, that may be difficult to read especially if you are located in the USA. With this parameter you can adjust the time zone so, that it displays the time values in the zone of your choice. You can use both negative and positive values to adjust the time so that it reflects your physical location.

configuration options

The default header comes with a simple HTML formatted header containing a logo and a short text. You can edit it as needed, adding text, tables, images or any other HTML elements. You can also use variable tokens that will be replaced by their values at the run-time.

configuration options

If you need to use additional Miva Script code in one of the available locations, you may choose between entering the Miva Script code directly into a field on the Admin screen, or using an external file from where the code will be called by this module.

configuration options

If the administrator of the store (in case of multiple stores in the mall) is not a trusted person, you should disable the use of Miva expression with this option and allow only use of external files. However, if the administrator has access to the disk and can install own modules or files, he would be able to access the data of other store owners anyway.

configuration options

With these options you can select which columns of the product list will apear on the notification.

Display / hide product or attribute codes

configuration options

Display / hide product or attribute names

configuration options

Display / hide long product descriptions

configuration options

Display / hide product thumbnail images

configuration options

Display / hide product weight

configuration options

Display / hide product or attribute cost. The cost field is usually used to keep your cost to produce or buy the product you are selling. In the notification it may be useful especially if you send notifications to your vendors or suppliers. If you do not want to show them your retail price, you can select to display the cost column instead and disable the price column. In such case, the total field will calculate the total price from the cost multiplied by the quantity. If you keep both cost and price columns, the total column will display values calculated for your retail price.

configuration options

Display / hide product or attribute single price

configuration options

Display / hide product quantity

configuration options

Display / hide product total price

configuration options

A user-defined colum may be displayd in different position right to a standard column or below it, depending on the selection of the two dropdown boxes right to the column definition. If Miva Expresions are enabled, you can enter a variable name or a full Miva Script expression that you want to execute for each product, into this field. If MvDO is selected in External commands, the function column() from an external script is called instead. If use at attributes option is checked, the expression is used also at attributes (when on a separate line).

configuration options

See above

configuration options

By default, Miva Merchant orders contain products sorted in the order how they were selected by the customer during the shopping. If you want to have the products sorted by an other criteria, you may choose here among the following ones:

• default (like in standard Miva Merchant)
• Product code (alphanumeric sorting)
• Product code (numeric sorting)
• Product name
• Product price
• Product weight
• Quantity

configuration options

When other than the default sorting is used, the products may be sorted in ascending order (by default) or, if this option checked, in descending order.

configuration options

In contrary to the standard Miva Merchant notification modules, that display product attributes always on a separate line, you can decide whether you want to do have them displayed in the same way (always on a new line), or always on the same line as the product name (with the total price product + attribute summed up) or let the module decide automatically - attributes without a price on the product line and attributes with own price on a separate line.

The displayed attribute text may be combined from the attribute code and the option code as at the standard Miva Merchant modules or with any combination of codes and the more verbose attribute/option prompts or data.

Attributes are displayed in a font defined in the parameter Small font size.

configuration options

Originally, attributes when they were displayed on a new line a "bull" sign (• •) was used to prefix the line. Some customers wished to remove the bull or use another prefix - that's why this option was introduced.

configuration options

When checked, the total price before shipping and tax is displayed above the charges and the total.

configuration options

When checked, the line of a charge (shipping, tax) is completely removed and won't be displayed if the charge is equal zero.

configuration options

The default footer comes with a simple credit note including a hyperlink. You can edit it as needed, adding text, tables, images or any other HTML elements. You can also use variable tokens that will be replaced by their values at the run-time.

In the header, footer and in the user-defined column, you can use tokens from this list. The tokens will be replaced with the values of the respective order in the run-time. Most tokens may be written in lowercase (values will be passes as stored in the database) or in uppercase (values will be displayed in uppercase too).

The list may vary depending on what other truXoft modules are installed in your stores. So for example, if you have the MmUSPS module installed, there will be tokens allowing you to display USPS shipping labels, USPS tracking Ids and barcodes.

configuration options

top

MmHTML was succesfully tested with following following Miva engines:

• Miva Empresa 3.77, 3.78
• Miva Empresa 3.9107, 3.9201, 3.9301

• Miva Merchant 2.2x, 3.xx, 4.xx
• MMUI, OUI, any UI

top

In Merchant Admin go to Modules/Add module/ click on the upload button, select the file on your local disk, upload and do not forget to click the Add button after you uploaded the file. That's all - the module will appear in your store. Set up the parameters in your store Fulfillment properties. When prompted enter the license key.

Detailed installation manual including instructions for enhanced referrer logging installation is in the  readme.txt  file.

top

We offer a  limited free suport  within 30 days after the date of the purchase for modules bought directly at  truXoft Co. or at affiliated resellers as written above. The support is limited to platforms from our compatibility list below and does not include any help with installation or configuration of payment modules, or other general Miva Merchant problems. Please note that also installation of the optional referer tracking and additional expressions or form fields are not included in the free support. If you have problems installing these additional options even after reading the installation instructions on this page, in the enclosed  readme.txt  file, and in the FAQ, and need assistance, you will be required to pay the installation fee. Help with setting up working P3P policies for proper functionality of the referrer tracking also with browsers following P3P rules, is also not included in the free support.

Some questions may be answered in the FAQ or may be solved with the help of other more experienced users on the Miva Merchant User List. I am monitoring all Miva lists and, if possible, will help with related problems posted to the user groups.

top

• Update to version 1.08 may overwrite your MmHTML parameters with defaults. Small font size may stay unnassigned in some cases and have to be set manually. Please save your original settings (colors, fonts, header, footer,..) before updating to 1.08.

top

INSTALLATION
I have installed the module but nothing happens.
I don't know how to install the module and can't follow these instructions.
I want to add this module to another store, what do I do?
Why doesn't the module appear in my store?
How do I update the module?
I am getting error unexpected '<' and get no notification at some orders!

E-MAIL
No notification emails are being sent.
When I take out my address in MmHTMLc FROM field (so that when I receive the email, all I get in the from field is the customer's address), then hit Update, my address shows up again.

COMPATIBILITY / SECURITY
Does the Merchant notification contain the customer's CC number?
Is your module compatible with AOL users?
You mentioned that some e-mail software 'automatically chooses' which one to accept between plain text and HTML.
What can I expect on the Miva Merchant invoice page?
What are all the possible outcomes of the e-mail?

PRINTING
Why don't my customized colors and/or images print out correctly?
Why don't my customized colors and/or images print out correctly on my printer?
How do I change the font size on the printed invoice?
How can I block the Internet Explorer page header and footer from printing?

CUSTOMIZING THE LOOK
Why doesn't my logo appear in the e-mailed invoice?
How do I customize the invoice?
Why can't I see the images (or product thumbnails)?
How do I change the background color of my tables in the header or footer?
Will I be able to change preset column headings in e-mails?
Could the truXoft logo / url link removed from the notification?
How do I modify customer / merchant invoices?
How do I include background image in the invoice?
How do I change the date / time format?
How do I change the time zone?
How can I hide the Billing address?
How can I hide certain address fields (beg fax number, company)?
Is there a way to see my changes as I customize the layout?
How do I move the quantity column to the left, next to the part number?
How can I remove the email address (phone, fax, company,...) from the address fields in the notification?
Is there a preview available?
How can I change the appearance of the attribute text?

ADDITIONAL FIELDS / TOKENS
How would I set up the module so the ADDENDUM message would be displayed?
Is it possible to have the SB21 / modStop OrderXtra (or another 4th party module) included in the notification?
I see the additional fields in Ultra Batch, but nothing comes in the notification.
The token %affil_code% does not work. What's wrong?
Can you provide more detailed information on how to use external commands?
Can MmHTML display pins or download info from VikingCoders' modules?

REFERRER TRACKING
Why does the "Additional User Info" show just my own web site as referrer?

faq

INSTALLATION

Make sure that you have assigned it to your store as well as installing it with "Add Module"

faq

Read the Module Installation documentation at http://www.miva.com/docs/merchant/

faq

This module requires one license per use. You won't need to repeat the installation, but you will need a different license key to assign it to your new store.

faq

Have you forgotten to hit the Add button after uploading the file in Modules/AddModule section?

faq

To update the module:

1. In your admin.mv, click the update link in the header of the module's control panel.
2. Follow the online instructions to download the updated module from the upgrade center. Remember where you save the file.
3. Unzip the file you downloaded to a location on your computer.
4. In your admin.mv, click the arrow next to Modules, then click on the module name (it's a link), then click the File tab in the right pane.
5. In the right-hand pane, click the upload button.
6. Locate the module file mmhtml.mv on your computer, click it once, then click open.
7. Click the Overwrite checkbox, then click the Update button.
8. Click back to the Information tab in the right pane and verify that the module was updated.
9. In your admin.mv, enter the module's Admin screen under Order Fulfillment

faq

Your product codes, names or descriptions contain forbidden characters out of HTML tags, such as <, or > instead of their HTML entities &lt; / &gt;. Either replace those characters in the text with their entities (but do not remove your HTML tags, if you have any in the product fields), or select the option "Don't parse HTML, show tags", MmHTML will then ignore the characters.

faq

E-MAIL

Please have a look at: http://mivo.truxoft.com/mmfaq.htm#Q010

faq

COMPATIBILITY / SECURITY

Yes, it does, but only if you have the MmPGP module (secure encryption) installed as well. Sending the data unencrypted would be a very serious security breach and a violation of the VISA policies. It could lead to immediate termination of your merchant account! The fine for the first violation is $50.000. You may want to read more at  VISA

faq

Yes, there were compatibility problems with old AOL 5.0 clients. The percentage of AOL 5.0 users is relatively low (the current version is 7.0), but it was an unpleasant glitch anyway. This was fixed it in three ways - exclusion by agent, exclusion by recipient's domain and with multipart/alternative protocol. There is still a small chance resting that an AOL user will access your store from a non-AOL computer and use a non-AOL address that redirects the e-mail to AOL, but the probability of such user is extremely low. If you use the multipart/alternative method for sending the e-mail, then the end-user is able to read the message even with an incompatible mail reader - the HTML source will be appended after the end of the plain text message.

You should not be too scared of the HTML e-mail format - many major online stores use HTML and no plain-text for their notifications.

faq

All modern mail readers are capable of reading both formats. For compatibility reasons, an e-mail message may be constructed in such a way that it contains both format versions and only the one fitting the recipient's setting (usually HTML) would be displayed. However, with some old mail readers, the other part (at the old client it is usually the HTML) will appear as a file attachment.

I currently know of no mail reader that could be configured to reject one or the other format. Someone had claimed that some administrators restrict HTML e-mail, but I do not think he had seen some himself or knew of some filter doing it. As for the security - plain HTML is as dangerous as plain text. If there should be a security filter installed, then it would be enough if it removes active components (Java, ActiveX, JavaScript,...). But it is true that the viruses transferred by ActiveX components are becoming more usual now. I do not think it would lead to the elimination of HTML e-mail. More likely and hopefully it would lead to a massive wave of security updates and hopefully more people will get modern and more secure mail readers.

faq

This is up to you. This module sends only a single message. Depending on the setting you choose, it may go out in plain-text (always) or in HTML (always, except < AOL5 users), or as plain text with an HTML file attachment, or as so called multipart/alternative version described above (on vast majority of mail clients it displays only the HTML formatted message). It never sends two e-mails, but if you decide to keep the original (Miva Merchant-native) standard plain-text customer e-mail module, you can indeed send them two notifications - one with the original module and another one with this module.

faq

So far, I can imagine these scenarios:

1. It arrives alright, HTML formatted
2. It arrives as a text message with HTML file attachment
3. It arrives as a correctly formatted HTML message with a text only file attachment
4. It arrives as a plain text message - the first part contains the plain text notification - and it continues at the end with its HTML source appended.

faq

PRINTING

If you use Microsoft Outlook, verify that MSIE is set to print the background: in MS Internet Explorer's menu, go to Tools/Internet Options/Advanced/Printing and be sure to check the 'Print background colors and images' option. With other mailers / browsers it should be similar.

faq

If you use Microsoft Outlook, verify that MSIE is set to print the background: in MS Internet Explorer's menu, go to Tools/Internet Options/Advanced/Printing and be sure to have checked the 'Print background colors and images' option. With other mailers / browsers it should be similar.

faq

You can set font size and face control in the module's Admin interface in Order Fulfillment Configuration - you can use also the px (pixels) and pt (points) units.

Additionally, you can make changes in MSIE / Outlook or other clients too. In MSIE, go to View / Text Size or define a User Style Sheet in Tools / Internet Options / Accessibility
In Netscape use Ctrl-[ and Ctrl-] and in Opera + and - keys to increase/decrease the font size.

faq

Go to File » Page Setup and delete the Header and Footer.

faq

EMAIL SETTING

It is the default address and has to stay there, because it is used even if you do not see it in the e-mail. This is to avoid problems with certain mail servers. If you do not want to use it at all, you have to select the standard from only option.

faq

CUSTOMIZING THE LOOK

Be sure to include the complete URL to the logo on your server, exactly as it is in the example IMG tag of the default header with the Miva Merchant log. Only remote images with a complete URL may be used. No images are being sent in the attachment of the notification, so you cannot use relative paths.

Optionally you can use the BASE HREF command in the HEAD content of the entire HTML content. You can see an example of this by viewing the source code for one of your Miva Merchant generated store pages. If you plan to do this, be sure to read important information on what you can and cannot include.

faq

You can change the colors and fonts of the invoice through the Admin form and you can modify the header and the footer of the invoice as much as you want if you respect usual HTML standards. You can use tables, forms, images or any other HTML elements. Feel free to use Style Sheet directives within individual tags if you are comfortable with them.

Do not forget to close all open tags (font, table, etc..). Use of JavaScript, Flash, Active-X, Real-Audio/Video and other active elements may work with some e-mail clients, bit may be limited with others. Keep in mind that some users turn these options off in their email programs, which may result in the message being rejected.

A hacker-trick for advanced HTML designers familiar with CSS: the values of the Admin fields for the font parameters are being embedded into the style sheet of the message, so you can add any general CSS blocks here. Try to add a short string and look afterwards into the HTML source of the generated e-mail to see how it works. You are only limited with the length of the field. If there is enough interest I may add a fully editable CSS parameter block in one of the future releases.

faq

HTML e-mail from the MmHTML modules contains only hyperlinked graphics and so the images/thumbnails are hyperlinked to your web site too. This means that the graphics are only visible if the recipient is online. A functionality to send the graphics together with the e-mail as an attachment was not made for two main reasons:

1. It is not polite (although this point does not apply in the case of Merchant notification :)
2. Technically it is more difficult. it is not possible with plain Miva Script, it would require an external program, such as my MimeConv v2 - but that would mean a lot of hassle with installations, because each platform requires another executable binary and individual setup, so the costs for such module, along with the support, would be multiple of the current solution.

faq

You have to use styles to assign the color in the cells:
<TD STYLE="background-color:#DDDDDD">

Better yet, for keeping compatibility with older e-mail clients, use the HTML directive too:
<TD BGCOLOR="#DDDDDD" STYLE="background-color:#DDDDDD">

You can also add an additional Style Sheet into the HTML header in this way, to avoid repeating the color definition in each cell tag and to reduce the e-mail message size:

<STYLE TYPE="text/css">
 .myheader TD {background-color:#DDDDDD;}
</STYLE>
</HEAD><BODY>
<table CLASS="myheader">

faq

Sure! Very easily. The texts are at the very top of the script in a single variable:
<MvASSIGN NAME="g.MHMC_prdEn" VALUE="Code,Name,Weight,Quantity,Cost,Price/Ea.,Total">

faq

Yes, of course! You can put whatever you want in this place. It is in the header / footer settings.

faq

Through the settings of the MmHTMLc (truXoft Customer Email), and the MmHTML (truxoft Merchant Email) module in the Order Fulfillment Configuration.

faq

The simplest way is including a
<BODY BACKGROUND="http://yoursite.com/path/img.gif">
tag into the invoice header.
Note that you must not include neither the opening HTML and HEAD tags, nor the closing /BODY, /HTML tags neither in the invoice header nor in the footer. Only closing /HEAD and opening BODY tags are allowed (but not compulsory) in the invoice header.

faq

In advanced settings, modify the Date & Time Format as needed.

faq

Go to advanced settings and change the time zone offset. Usually it will be either the difference (in hours) between GMT and your local time or the difference between your time and the time at the location of your server. Positive numbers increase the time displayed on the invoices.

top

In Admin » Stores » your store » Customer Fields » Billing Information select Hidden. This will hide the Billing Section entirely for the Miva Merchant store.

Additionally, in MmPSLP you can hide the billing address in the advanced options independently on the global Miva Merchant settings.

top

In Admin » Stores » your store » Customer Fields select Hidden at the fields you want to hide. This will hide those fields for the store.

top

Open the Ultra Batch in another browser window and reload it each time you make a change in the settings. You may want to set a filter so that you see just a single order to make it faster.

top

Disable the Quantity column in the advanced settings and put the following code into the User-Defined Column expression: OrderItems.d.quantity

top

You can disable the e-mail, similarly as any other field in Admin » Stores » "your store" » Customer Fields, setting it as hidden.

top

Yes, the preview exists - if you are owner of the Ultra Batch, you can open a short batch report in a separate browser window and can reload the page after each change in MmHTML / MmHTMLc to see the effect immediately without submitting any orders.

top

Change the definition of the "Small font size" in MmHTML settings. You can change not only the font-size, but also font-family, font-weight or other CSS attributes of the font. For example for displaying product attributes in normal font instead of the default italic, you can add the following CSS definition:
font-style: normal;

faq

ADDITIONAL FIELDS

Simply put the field name variable into the 'additional form fields' list. So for example if you have an Addendum text area tag called 'question1' (<TEXTAREA NAME="question1"...), put the following text into this field:
g.question1

typing 'question1' without the leading 'g.' would work too, but using the scope is preferred.

If you need to add some text label in front of the variable, you have to quote it like in a Miva script expression:
'<BR><B>Your comment:</B><BR>' $ g.question1

You can also display more of them, in this way:
'<BR>Text1: ' $ g.question1 $ '<BR>Text2: ' $ g.question2 ....

faq

Yes, it is. See above for variables (form fields) available on the last checkout page (e.g. all Addendum fields). The values of some other 4th party module vendors have to be pulled out of the 4th party module data files. This means it must be individually coded for each 4th party module with additional fields. There are two ways available:

1. If you are a Miva Script coder: You create a file called xmmhtml1.mv (containing the numeric ID of your store - by default 1) and put these three functions in it: column(), header() and footer(). You can use any Miva Script commands and functions to open the respective files and have them inserted in the respective places of the invoice - both for the notification and the batch reports
    . The file is to be place in the same directory as MmHTML.mv (...modules/fulfill/)
2. If you do not want to mess with the coding, you can buy the MmEXT module that does it for you.

faq

Be sure that you have followed MmEXT installation instructions correctly, especially the part about the order of modules. You can change the expression to display both, the MmEXT generated variables (e.g. Addendum.var1) and the form field variables used on the checkout page (e.g. g.question1). This way, if the order of modules is wrong, the form field variables will be displayed in the notification and the MmEXT variables in the Ultra Batch reports. However, if the order of the modules is correct, the additional fields would display duplicated (use just the MmEXT variables in that case).

faq

There is a small bug (or a forgotten feature) in Miva Merchant. It does not write the affiliate code to the respective field in the orders database. If you want to use the token for the affiliate code, you have to add the following code into the Merchant2/4.xx/lib/db.mv file. Open it in a text editor (such as Notepad) and search for the following block of code (in the v4.12 db.mv it is at line 6574, and a=it is the line 6591 in v4.13):

<MvIF EXPR = "{ g.Features:Affiliates:Enabled }">
 <MvDO FILE = "{ g.Module_Feature_AFF_DB }" NAME = "l.ok"
       VALUE = "{ Affiliate_Create_Order( l.session_id, l.total ) }">
</MvIF>

Then insert the following modification:

<MvIF EXPR = "{ g.Features:Affiliates:Enabled }">
 <MvDO FILE = "{ g.Module_Feature_AFF_DB }" NAME = "l.ok"
       VALUE = "{ Affiliate_Create_Order( l.session_id, l.total ) }">
 <MvCOMMENT> ### custom modification !!! ### </MvCOMMENT>
   <MvASSIGN NAME="Orders.d.affil_code" VALUE="{AffiliateSession.d.affil_code}">
   <MvUPDATE NAME="Orders">
 <MvCOMMENT> ### end / custom modification !!! ### </MvCOMMENT>
</MvIF>

Please note that the change will have effect only on newly submitted orders.

faq

Create a file called ...modules/fulfill/xmmhtml1.mv (containing the real numeric ID of your store instead of 1) and put these three functions in it: column( ), header( ) and footer( ). You can use any Miva Script commands and functions to open the respective files and have them inserted in the respective places of the invoice - both for the notification and the batch reports. The functions have no parameters. They should return the text you want to display.

Pointers to the Order, OrderItems and many other databases are already set in the moment of calling the functions and you should not move them.

There is an empty skeleton of such file here:

<MvFUNCTION NAME="header" STANDARDOUTPUTLEVEL="">
  enter code to be executed in the header of the notification here
  <MvFUNCRETURN VALUE="{l.myText}">
</MvFUNCTION>

<MvFUNCTION NAME="footer" STANDARDOUTPUTLEVEL="">
  enter code to be executed in the footer of the notification here
  <MvFUNCRETURN VALUE="{l.myText}">
</MvFUNCTION>

<MvFUNCTION NAME="column" STANDARDOUTPUTLEVEL="">
  enter code to be executed in the user-defined column of the notification
  (will be executed for each product, or (if selected) for each attribute)
  <MvFUNCRETURN VALUE="{l.myText}">
</MvFUNCTION>

faq

Yes, the module has a built-in interface to VikingCoders' VC_PIN and VC_SOFTGOODS modules.

Simply put the token %vc_pin%, resp. %vc_softgoods% into the Additional Miva Footer - Miva Expression field (not the HTML footer!)

Note: you can also use the xmmhtml00000001.mv external file for serving serial numbers or PINs from a flatfile or a database. Contact us if you are interested. Softgoods may be served with the MmPASS module for the best results.

faq

REFERRER TRACKING

Either you have not installed the refer.mv script, did not install it correctly, or your secure server has problems with cookies. Be sure to verify your P3P policies and to have read the readme-txt or the mmhtml-readme.txt file from the installation package carefully and completely. Be sure to have followed all instructions and verified all possibilities mentioned in the troubleshooting part of the referrer tracking installation instructions!

PLEASE NOTE: help with the installation of the Referrer Tracking feature and with setting up the "Additional Expressions / Fields" option, is not included in the free support. All customers asking for assistance on these features will be required to pay the installation fee of $50 in advance.

top

In case of troubles, before contacting the support, please be sure to:

1. read the FAQ
2. check the changelog and update the module to the latest version
3. read known limitation and bugs

top

• ?

top

top
